Reference 5020cx
Details https://th.infinityspeakers.com/REFERENCE+5020CX.html?dwvar_REFERENCE%205020CX_color=Black-USA-Current5-1/4" (130mm) coaxial car speaker
New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models ofter an adjustable tweeter output level control for optimization based on installation location. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered basket is optimized to fit most factory openings. Available in a range of standard sizes—3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component—they’re the perfect upgrade from factory speakers.
Know What's In The Box
- 1 pair of woofers
- 1 pair of tweeters
- 1 pair of crossovers
- 1 pair of tweeter surface mount accessories
- 1 pair of tweeter flush mount accessories
- 1 pair of tweeter nuts
- 1 pair of tweeter flat washers
- 6 tweeter mounting screws
- 8 woofer mounting screws
- 8 crossover mounting screws
- 8 speed clips
- Foam mounting tape
- Owner’s manual
Product Specs, Manuals, Compatibility & Features
Documents & Downloads
The latest owner's manuals, quick start guides, and documents.
General Specifications
- Description

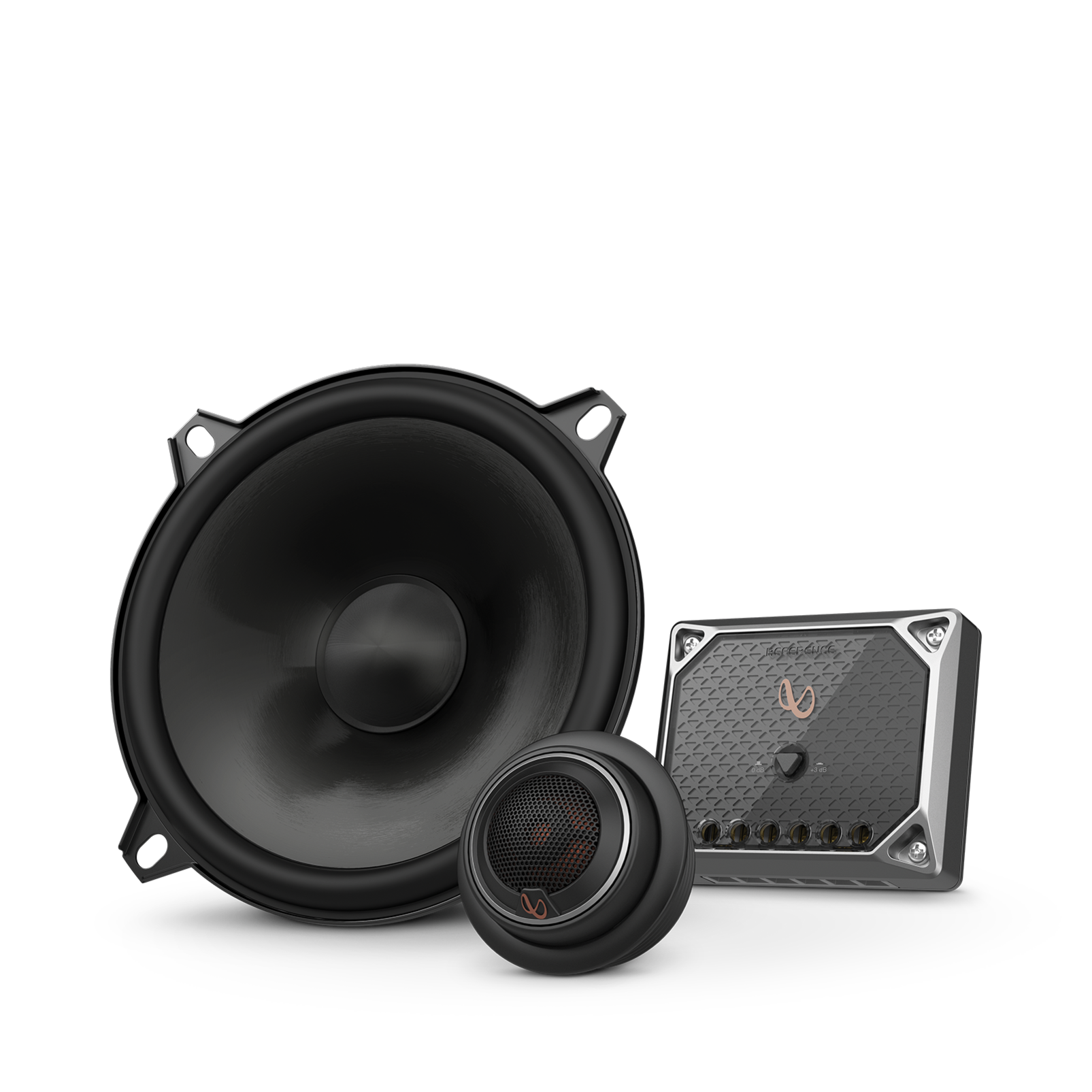

- 5-1/4" (130mm) component speaker system
- Power Handling
- 65W RMS, 195W peak
- Sensitivity (@ 2.83V)
- 93dB
- Frequency Response
- 67Hz – 21kHz
- Impedance
- 3.0 ohms
Audio Specifications
- Sensitivity (@ 2.83V)
- 93dB
- Frequency Response
- 67Hz – 21kHz
- Impedance
- 3.0 ohms
Features
Edge-driven, textile tweeters
The tweeters in Infinity Reference speakers play smooth, never-harsh regardless of output level.
Adjustable tweeter output level
The larger Reference coaxial models and the component systems offer a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and greater musical character.
Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit in just about any vehicle on the road today. That means signature Infinity sound in more vehicles.
Competitive pricing
Reference speakers provide signature Infinity sound at affordable prices.
